Outdoor LED Display
With outdoor LED display, you can always ensure that your information stays bright outdoors. No matter what your outdoor scene is, we can find the most suitable outdoor LED display solution for you.

Best Outdoor LED Display Manufacturer in China: MVPLED is the best professional wholesale outdoor LED display manufacturer in China. We provide OEM/ODM services to customers since 2023, focusing on high-quality outdoor LED displays and very competitive prices. Our team has many years of industry experience and can solve any problems you may have from purchase to after-sales, providing cost-effective products and value-for-money services.

Outdoor LED Display Series Products

Outdoor LED displays, as one of the two main families of LED displays, are covered below in a number of different types and models.

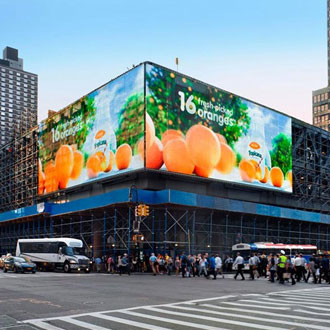

Outdoor Fixed LED Display

It is suitable for products with long-term fixed display, such as LED digital billboards, community bulletin boards, etc.

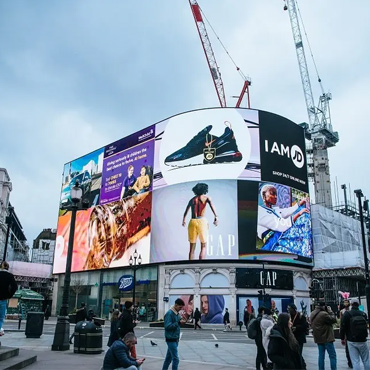

Outdoor Flexible LED Display

It can create LED displays of various shapes, which can achieve very attractive effects when placed outdoors.

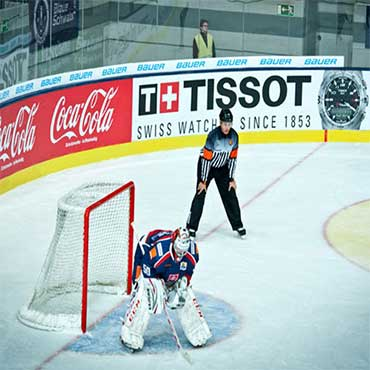

Outdoor LED display customization

If you don't find the outdoor LED display you need, you can choose to customize it here

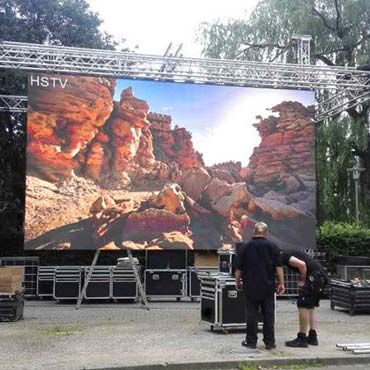

Outdoor Rental LED Display

The outdoor rental LED display it uses is made of die-cast aluminum, which is lighter than iron.

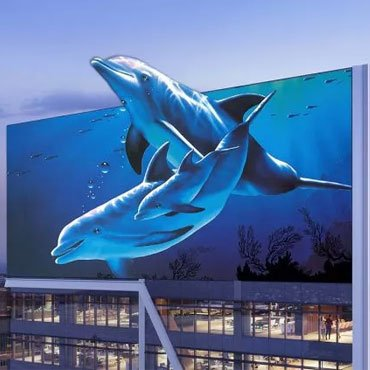

Outdoor 3D LED Display

It is mainly installed in some large shopping malls and can display a variety of surprising 3D dynamic effects.

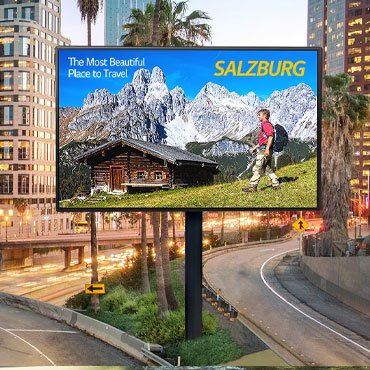

Outdoor Scrolling LED Display

Outdoor scrolling LED displays are suitable for those who need to scroll to display text or pictures, and can scroll from left to right or bottom to top.

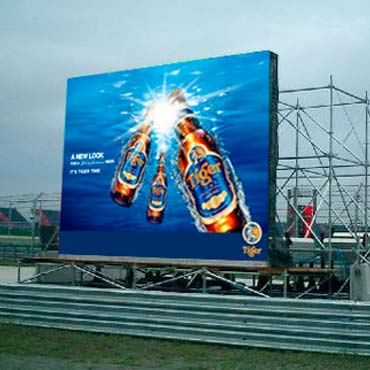

Outdoor SMD LED Display

The outdoor SMD LED display is an outdoor product series made using surface mount technology, which can make the displayed picture more high-definition when used outdoors.

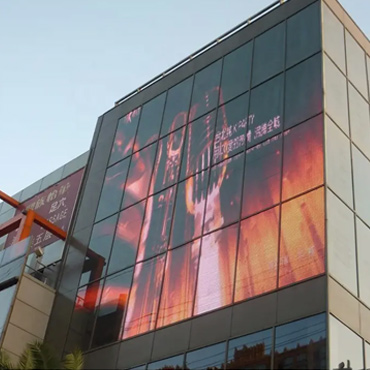

Outdoor Transparent LED Display

The transparent LED display used outdoors can display the picture without affecting the surrounding background, so it is more technological and fashionable.

Outdoor LED Display Video

Here you can see the outdoor LED display screen displayed in various scenes

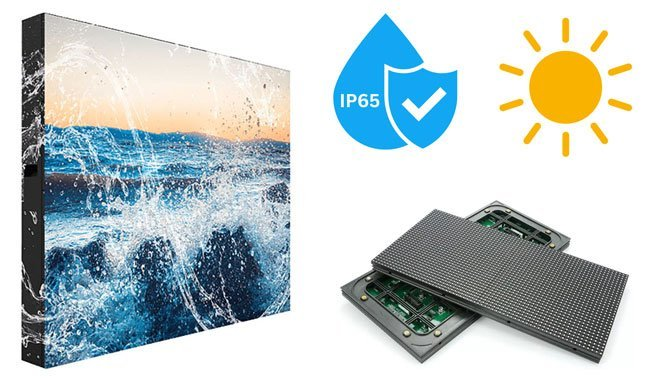

Introduction to the characteristics of MVPLED outdoor LED display

Due to the harsh use environment of outdoor LED displays, such as rain, humidity, seaside, roadside dust, etc., outdoor products require higher protection levels. Our outdoor LED displays are IP65 on the front and IP65/IP54/IP43 on the back.

1.The LED module lamp surface is filled with waterproof glue, which can protect the lamp feet and release water;

2.The back of the PCB is brushed with three anti-paint to protect the circuit and components;

3.Use rubber strips or gaskets for waterproofing on the bonding surface, such as module rubber rings, door panel rubber strips, etc.;

4.The case structure is designed with waterproof structures, such as rain eaves, waterproof covers, leakage holes, water holes, and other structures.

High Performance Protection Level

For advertisers, when playing outdoor advertisements, they often face rain, snow, fog and other weather conditions, which will interfere with the display effect of the screen and may affect electronic devices.

But don’t worry, LED outdoor screen display uses high quality protection-grade outdoor LED modules, and a waterproof ring is added to the module to further block the entry of rain and foreign objects, and can withstand various harsh weather.

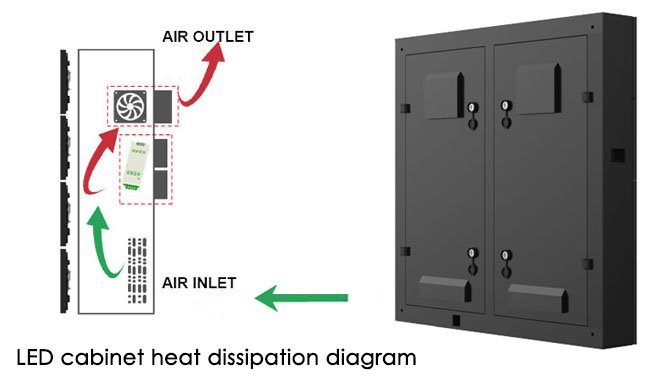

Double Cycle Heat Dissipation

The outdoor LED display cabinet uses a dual circulation system for heat dissipation, This does a good job of dissipating the heat generated when the screen is running.

Even if the outdoor temperature reaches more than 40 degrees, there is no problem when the LED outdoor display screen is running.

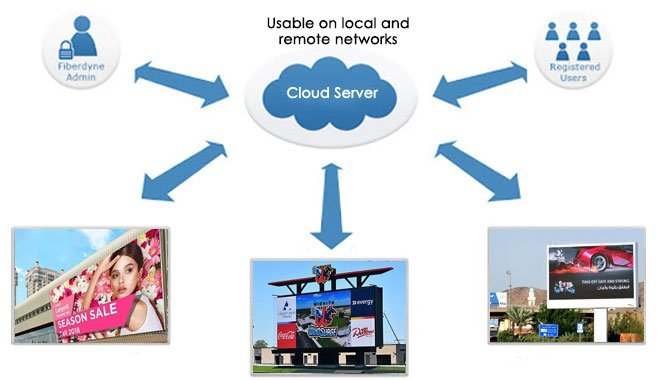

Cloud Server Content Update and Management

When there are many outdoor LED display screens, it will be very troublesome to update them one by one. Therefore, each outdoor LED display has a built-in LED control system that can receive control signals from the cloud.

The advantage of this is that we only need to set the instructions in the cloud to update the content of the screens that have received the signal in batches.

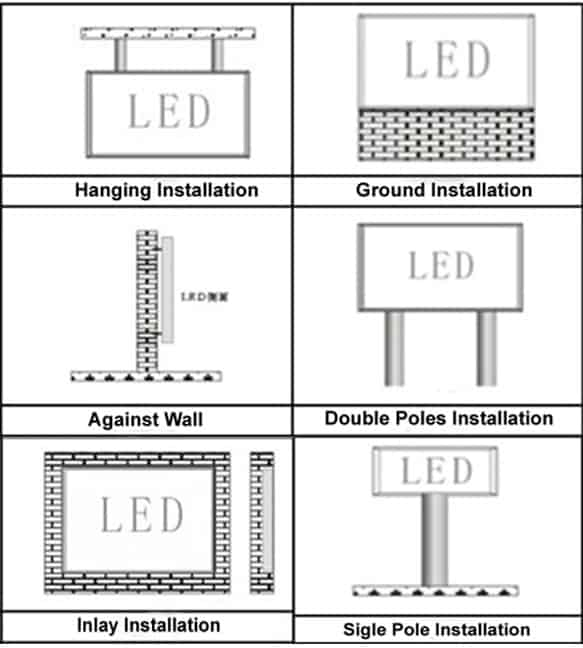

MVPLED provides these outdoor LED display installation methods

LED displays are currently used in many fields in the market. According to different application fields and installation environments, LED display installation methods are also different.

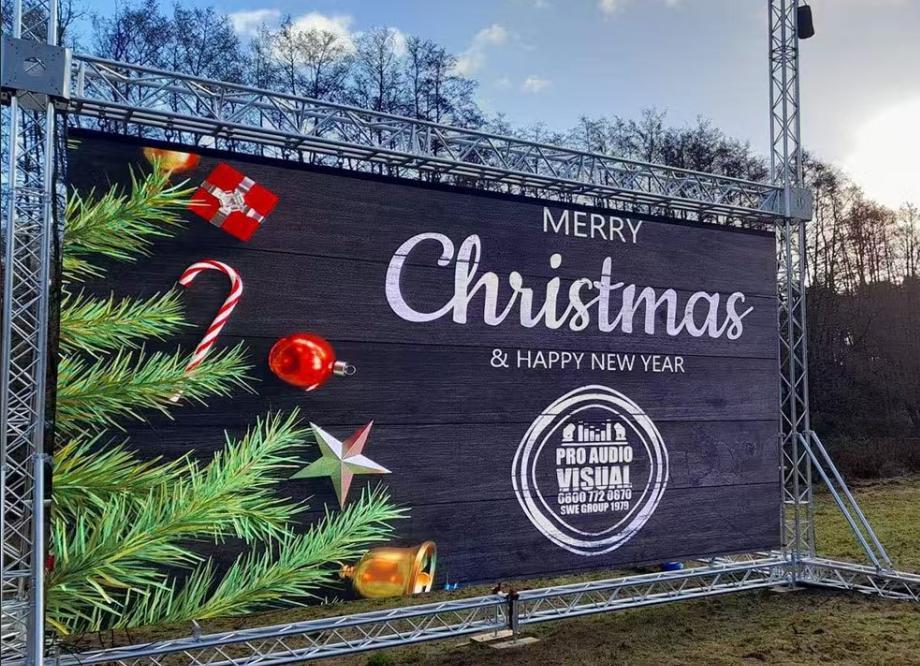

Hanging installation: Hanging the LED display on the boom, truss, buildings, etc., is generally used at the entrance of passages and corridors, but also at the entrance of stations, railway stations, and subway entrances, and used for traffic guidance on roads, railways, and expressways;

Against Wall: Through the pendant, the steel structure hangs the LED display on the wall. It is divided into front service and rear service according to whether the maintenance channel is needed in the back;

Inlay installation: The entire LED display body is embedded in the wall, and the display plane is flush with the wall. It is generally front service and used for building entrances, building halls, etc. Ground installation: The LED display is installed on the ground and platform through the steel structure. Usually installed on building roofs, ground, and platforms;

Pole installation: Install the LED display on the column for advertising. If the LED display size is small and a single column is used. The larger the area, the more columns are required.

More details about outdoor LED displays

These LED module model information will help you purchase better

Pixel Pitch(mm) P2.5 P3.33 P4 P5 P6.67 P8 P10
LED Encapsulation Kinglight Kinglight Kinglight Kinglight Kinglight Kinglight Kinglight
LED Type SMD 1415 SMD 1921 SMD 1921 SMD 2525 SMD 2727 SMD 3535 SMD 3535
Cabinet Size (W x H, mm) 960*960 960*960 960*960 960*960 960*960 960*960 960*960
Depth(mm) 150 150 150 150 150 150 150
Weight(kg/m2) 45 45 45 45 45 45 45
Control System Novstar Novstar Novstar Novstar Novstar Novstar Novstar
Standard Brightness(nits)(cd/m2) 5500 5500 5500 5500 5500 5500 5500
Viewing Angle 140 * 140 140 * 140 140 * 140 140 * 140 140 * 140 140 * 140 120 * 70
Contrast Ratio 2000 : 1 2000 : 1 2000 : 1 2000 : 1 2000 : 1 2000 : 1 1000 : 1
Power Consumption (Avg.)(Watts/Tile) 300 300 300 300 300 350 350
Refresh Rate(Hz) 1920 1920 1920 1920 1920 1920 1920
Driving IC ICN2028s ICN2038s ICN2027 ICN2027 ICN2027 ICN2027 ICN2027
Protection (IP) Rating IP65 IP65 IP65 IP65 IP65 IP65 IP65
Cabinet Type Steel Steel Steel Steel Steel Steel Steel
Data Processing 14 Bit 14 Bit 14 Bit 14 Bit 14 Bit 14 Bit 14 Bit
Power Supply(300w) Chuanglian Chuanglian Chuanglian Chuanglian Chuanglian Chuanglian Chuanglian


The outdoor LED display cabinet adopts standard size design and can be equipped with different types of outdoor LED modules, compatible with P2.5, P3.33, P4, P5, P6, P8, P10.

FAQ

Maybe you still have these questions about outdoor display screens

Outdoor LED display is an LED display that can be used and installed outdoors, with high brightness, good waterproof, dustproof, and good heat dissipation.

Mainly used in securities trading, gymnasium, road traffic, dispatch and command center, financial information display, dynamic information display of airports and stations, passenger guidance information display of ports and stations, business promotion and information display of postal services, telecommunications, shopping malls and other service fields, performances, and assemblies, exhibitions and rentals, schools and hospitals, etc.

Outdoor LED displays are installed in bustling streets, airports, highways, railways, urban roads, stations, squares, and other occasions with high traffic. It can display colorful images and texts on the screen in turn and can display multiple different manufacturers and different product information in a short period of time. interest, achieve good advertising effect and bring you considerable economic benefits.

  • Play the role of product promotion and attract customers;
  • Play a role in decorating storefronts and improving enterprise grades;
  • Play the role of lighting and unconventional;
  • function as a bulletin board;
  • To set off the atmosphere;

There are various programming methods for outdoor LED displays, including synchronous, asynchronous, synchronous & asynchronous systems, and the most timely transmission method is selected according to on-site needs. Generally speaking, outdoor rental LED displays to choose synchronous control systems, and outdoor fixed installations choose asynchronous or synchronous & Asynchronous is more.

The price is the first and most important thing to consider when buying an outdoor LED display, it is priced from 450 USD/sqm to 3000USD/sqm, which seems to be very different because it is related to many factors:

  • Pixel pitch: the smaller the pixel pitch, the higher the resolution, the clearer the image, and of course the more expensive the price, For example, the price of P5 is higher than that of P10;
  • Lamps: Different brands of lamp beads have different prices, the main lamp beads are Nationstar, Kinglight, HS lamps, etc;
  • Cabinets: different types and materials have different prices, including iron cabinets, sheet metal aluminum cabinets, die-cast aluminum cabinets, magnesium alloy cabinets, etc;
  • Maintenance method: the price of front maintenance will be higher than that of rear maintenance due to the complex structure;
  • Size: Of course, the same model, the larger the area, the higher the price;
  • Other additions: power supply model, control system model, IC, cable material, etc.
  • Brightness: The outdoor LED display needs to have high brightness under strong light. If it is used indoors, it will be dazzling. The outdoor brightness is higher than 5000nits, and the indoor LED display brightness is relatively low, at about 1000nits;
  • Waterproof: The front of the outdoor LED module is filled with waterproof glue and the back is brushed with three-proof paint. The box structure is designed to be a waterproof structure, while the indoor LED display does not need to be waterproof;
  • Cabinet: Outdoor led cabinets are waterproof, but indoors are not;
  • Price: The price of an outdoor LED display is higher than that of an indoor display;
  • Resolution: The viewing distance of the indoor LED display is near, and the pixel pitch with high resolution is usually selected. The outdoor viewing distance is far, and the model with a large pixel pitch is selected.

Yes, it’s OK.
We can manually adjust the brightness of the outdoor LED display, adjust the brightness regularly, and also install a light sensor to automatically adjust the brightness according to the brightness of the environment.

Yes, it is. The definition of IP65 protection level can be known that it completely prevents dust from entering and has no effect on low-pressure spray at any angle, which is completely sufficient in a normal outdoor environment.

Because the heat dissipation of outdoor LED displays is also a very important consideration, it is normal to open heat dissipation holes at the back of the cabinets to dissipate heat, so the waterproof level of the back of the screen is only IP54 or IP43, which is also acceptable. For the replacement protection level, you can consider wrapping the whole screen to protect it.

There are front service and rear service:

  1. Front service is no maintenance space behind the LED display, usually used for wall installation;
  2. Rear service is a maintenance channel behind the LED display screen for maintenance and installation, usually pole installation, and platform installation;

Usually, the input voltage of the outdoor led display is divided into 110v and 220v, and the output voltage is unified as 5V.
110v is usually the United States, Canada, Japan, South Korea, Latin America, Taiwan, and other countries and regions;
220v is for other countries and regions except for the above countries and regions, such as China, Southeast Asia, Africa, Europe, etc.

In the LED display industry, the main lamp beads brands are Nationstar, Kinglight, HS lamps, etc.

The resolution of different outdoor LED displays is different. The higher the resolution, the clearer the displayed pictures or videos, so the effect presented to the audience is also a big difference.

The pixel pitch models for outdoor fixed installation are P2.5, P3, P3.076, P3.3, P4.8, P5, P5.92, P6, P6.67, P8, P10, P16, etc.

The usual models of outdoor LED displays are P2.5, P3, P3.076, P3.3, P4, P4.8, P5, P5.92, P6, P6.67, P8, P10, P12, P16, P20, P25, etc., So many types, how do we choose? SZLEDWORLD helps you sort it out for your reference.

1, According to the LED display size:

  • Less than 15 sqm, recommending P2.5 to P5 which is high-definition and high refresh;
  • From 15sqm to 30sqm, P5 to P10 will be advised to be chosen;
  • From 30sqm to 100sqm and view distance is 10m away, it is recommended P10 to P16.

2, According to the viewing distance:

We all know that P is the pixel pitch, and the value behind P mainly refers to the distance between the pixels of the display module, which is usually called the pixel pitch in the LED display industry. The smaller the value of this pixel pitch, the higher the pixel density, the clearer the display screen, and the more suitable it for close-up viewing. Therefore, for the LED outdoor display,

  • if the distance is relatively close, it is recommended to use P2.5 to P5;
  • If it is farther away, use P5 to P10 ;
  • If it is farther away, use the display between P10 to P25.

Those who buy LED displays for the first time, do not know what matters and what requirements should be paid attention to. Here are some main things that need to pay attention to:

Pixel pitch: The LED display screen that considers the pixel pitch can save costs while ensuring the display effect. The LED display screen for close viewing selects a small pixel pitch, and the farther the viewing distance is, the larger the pixel pitch is;

Waterproof: waterproof performance is the most important factor to be considered for outdoor LED displays. A good waterproof screen has a lower failure rate and a longer service life;

Brightness: Brightness is the most important factor that affects the display effect of outdoor LED displays in sunlight. When directly in the sunlight LED displays to need to choose higher brightness, and the brightness can be relatively low when facing away from the sun;

Maintenance mode: when there is maintenance space behind the LED screen, choose rear maintenance. When the led screen is required to be thin or there is no maintenance space on the backside, you must choose the front-maintenance LED display;

Cabinet:

  • The LED display is installed on the seaside, we need to consider the use of aluminum cabinets, which are waterproof, rust-proof, and salt-resistant.
  • The outdoor LED display requires lightweight, die-casting aluminum alloy, magnesium alloy, and aluminum sheet cabinet can be used.
  • The LED screen requires a thin body, we can choose die-casting aluminum cabinets or magnesium die-casting cabinets
  • The outdoor LED screen is standard use with a better price, choosing standard iron cabinets;

Generally speaking, the service life of an outdoor LED display under normal conditions and normal use is around 100,000 hours, which will be about 12 years.

  1. Installation environment: The harsher the installation environment of the LED display, the shorter its service life;
  2. Brightness and light decay are also important factors that affect life. When we use it, we use it according to the standard brightness, and do not blindly pursue high brightness;
  3. It is also very important to choose the appropriate raw material manufacturer.

IP65 “IP” is short for Ingress Protection, the first number “6” is the dust rating, and the mean of it is “completely prevent dust from entering”; the second number “5” is waterproof, and the mean of it is “low-pressure injection at any angle has no effect”.

Dust rating (the first X indicates)
0: no protection
1: Prevent the intrusion of large solids
2: Prevent the intrusion of medium-sized solids
3: Prevent the intrusion of small solids
4: Prevent solids larger than 1mm from entering
5: Prevent harmful dust accumulation
6: Completely prevent dust from entering
Waterproof rating (the second X indicates)

Waterproof rating (the second X indicates)
0: no protection
1: Water droplets dripping into the shell have no effect
2: Water or rainwater dripping from 15 degrees on the shell has no effect
3: Water or rainwater dripping from a 60-degree angle to the shell has no effect
4: Water splashing at any angle has no effect
5: Low-pressure injection at any angle has no effect
6: High-pressure jet water has no effect
7: It can withstand water immersion in a short time (15cm-1m, within half an hour)
8: Soak in water for a long time under certain pressure

Projects case: The installation case is a rigid standard for identifying the strength of the manufacturer. You can ask the manufacturer to provide project videos and pictures to identify the quality and reputation of their products；

Service: Whether it is pre-sales communication, on-site inspection, product quotation conversation, or after-sales maintenance, good service is needed to better meet customer needs;

Experience: The company has been established time, and the company’s industry experience and sales experience are also very important. A sales company with rich experience can recommend products that can meet your needs well. At the same time save your costs;

Quality: It can investigate whether the quality of its products meets the requirements through the feedback of its customers, the raw materials of the products, and the documentation;

Factory visit: If conditions permit, you can visit the factory site, or entrust local friends to evaluate the factory to inspect product quality, processing technology, personnel services, etc;

Price: We need to compare the prices of raw materials of the same quality, such as LEDs, ICs, cabinets, power supplies, cards, maintenance methods, packaging, and other factors. Do not choose products that are too much lower than the market price, because the quality and price have a certain positive correlation.

Outdoor LED display, as the new darling of outdoor display advertising media in the future, is widely used in finance, taxation, industry and commerce, post and telecommunications, sports, advertising, factories and mines, transportation, education systems, stations, docks, airports, shopping malls, hospitals, hotels, banks, stock markets, construction markets, auction houses, industrial enterprise management, and other public places. With media display, information release, traffic guidance, creative display, and other purposes.

The materials for outdoor LED displays are usually waterproof iron cabinets, waterproof sheet metal aluminum cabinets, profile cabinets, die-casting aluminum cabinets, die-casting magnesium alloy cabinets, etc.

  • Usually, the standard size of the sheet metal cabinet is 960mm x 960mm, but the size of the sheet metal cabinet can be customized according to customer needs;
  • The standard size of the die-casting aluminum cabinet is 960mmx960mm;
  • The standard size of the rental LED cabinet is 500mm x 500mm.
