INDOOR LED DISPLAY
Indoor LED Displays for Clear, High-Impact Visual Communication
Ultra-high-definition LED display systems for indoor commercial and professional environments. MVP LED configures the screen around viewing distance, cabinet access, content, venue and project requirements.
COMMERCIAL VALUE
Indoor Displays That Make Content Easier to See—and Harder to Ignore
Looking to attract attention with a clear, bright large-format indoor display? MVP LED indoor screens combine slim cabinet options with detailed image reproduction for commercial advertising, brand communication and professional visualization.
Instead of selecting a screen from one specification alone, we review the intended space, viewing distance, content and maintenance access before recommending a configuration.
Close-Viewing Clarity
Fine-pitch options for detailed content and shorter viewing distances.
Fixed-System Choices
Standard, fine-pitch and front-service LED wall configurations for permanent indoor installations.
Project Configuration
Cabinet, size, brightness, control and service access matched to the site.
INDOOR FIXED DISPLAY RANGE
Choose the LED Wall Around Viewing Distance and Installation Access

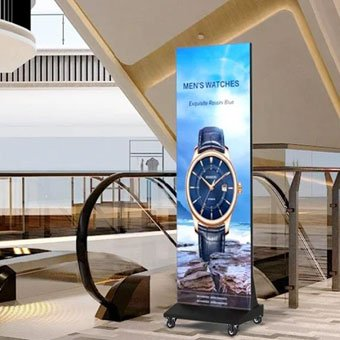

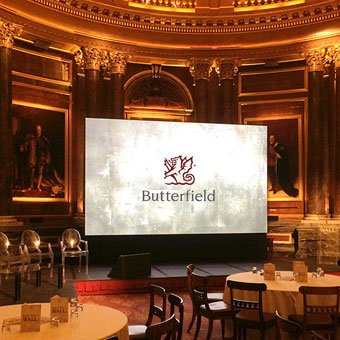

These configurations stay focused on permanent indoor LED display projects. Rental, transparent, poster and flexible systems remain available on their dedicated product pages.

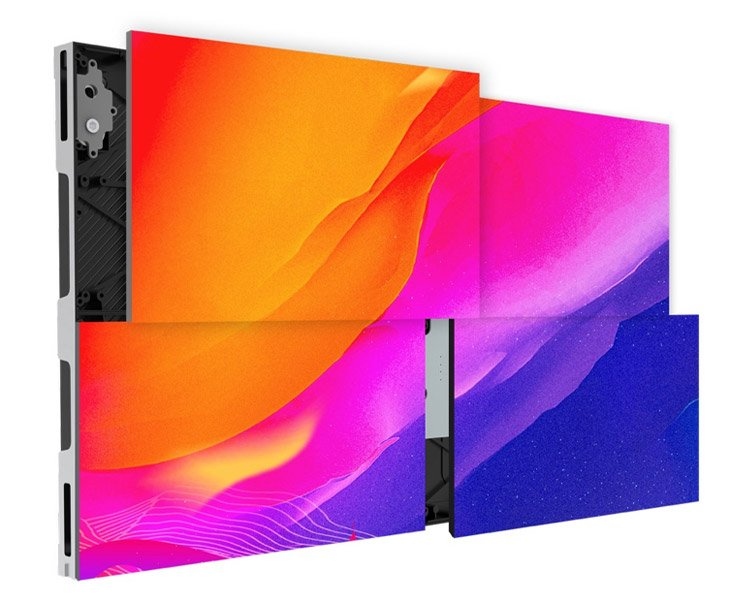

Fine-Pitch LED Video Wall
A seamless presentation surface for boardrooms, broadcast studios and spaces where viewers stand close to detailed content.
- Fine-pitch configuration
- Camera and content review
- Permanent wall integration

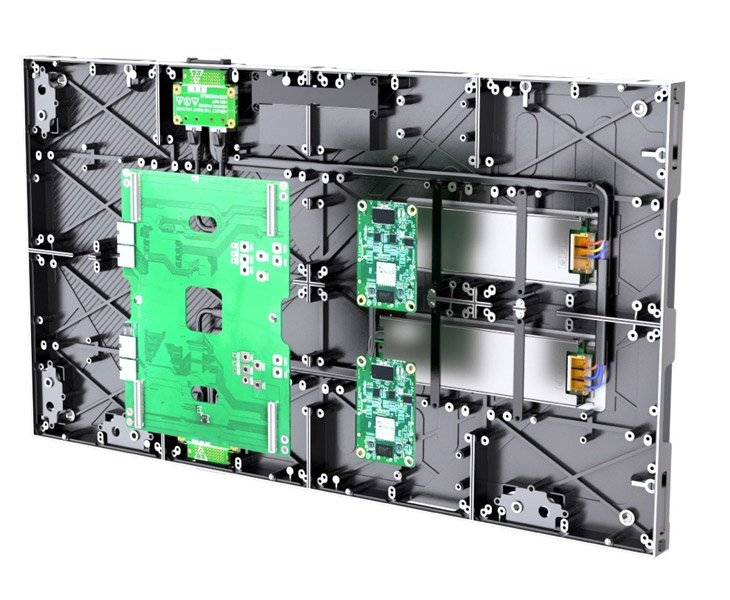

Front-Service Indoor LED Wall
Modules and selected internal components are accessed from the display face when a rear maintenance corridor is unavailable.
- Reduced service depth
- Module access from the front
- Mounting method reviewed by site

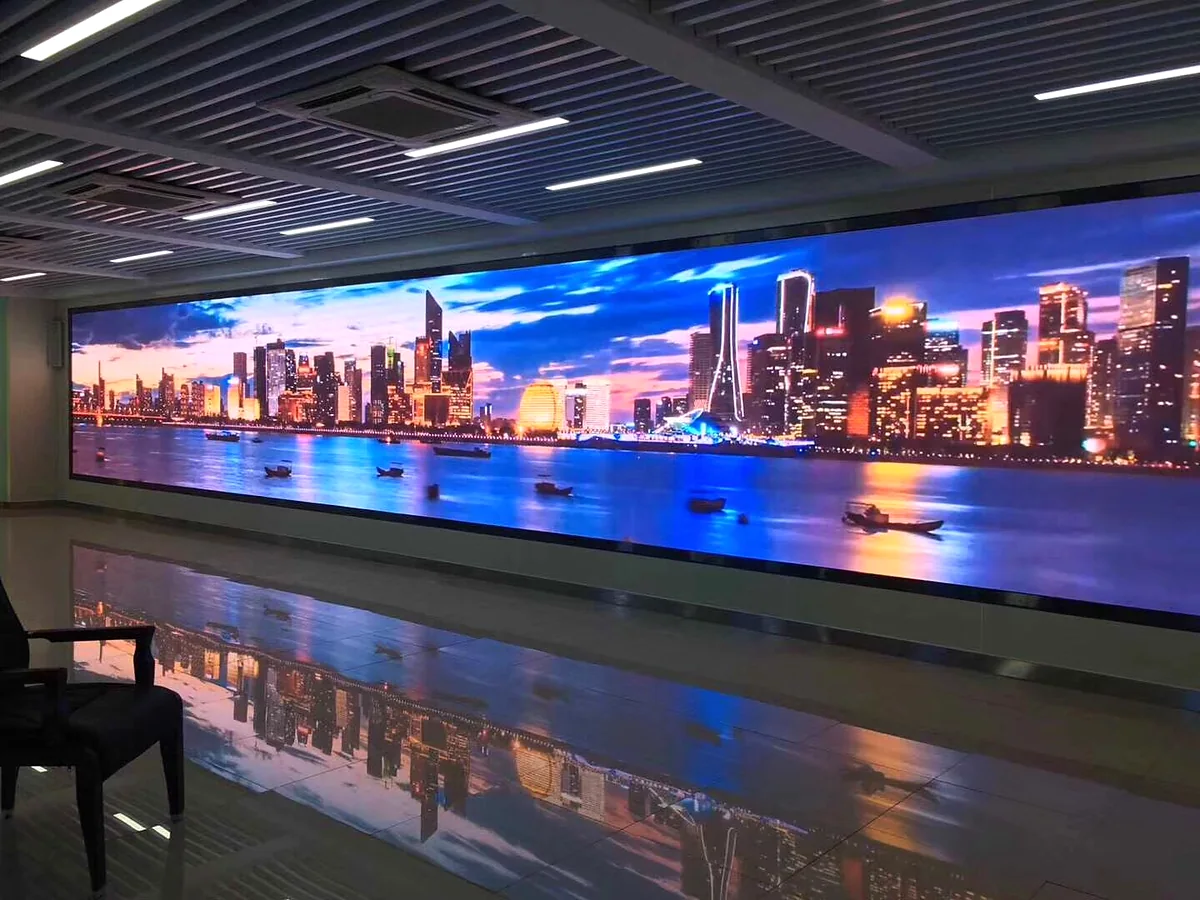

Standard Indoor Fixed LED Display
A cabinet-based LED wall for meeting rooms, auditoriums, showrooms and commercial interiors with medium viewing distances.
- Scalable wall dimensions
- Fixed mounting structure
- Project-specific control system

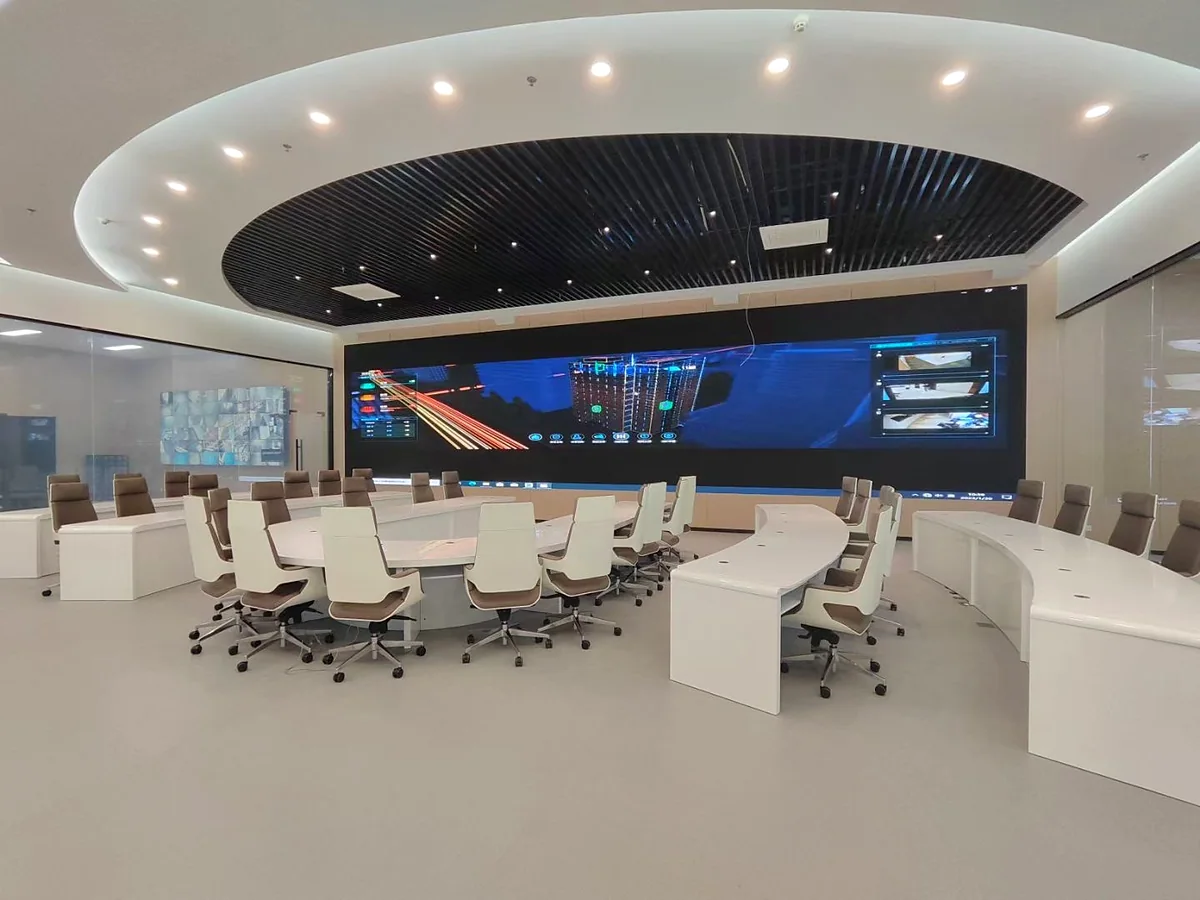

Control Room LED Display
Fine-detail visualization for dashboards, monitoring feeds and multi-source content in command and operations environments.
- Multi-source signal planning
- Close-viewing detail
- Long operating schedules

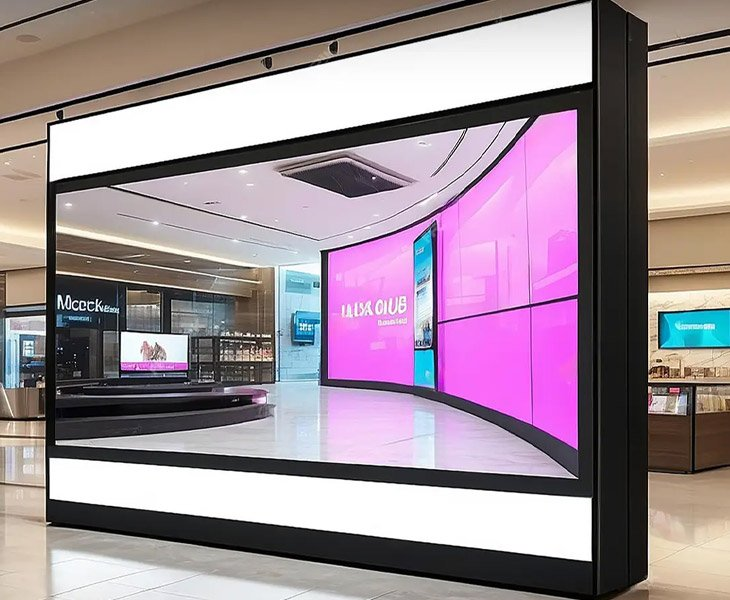

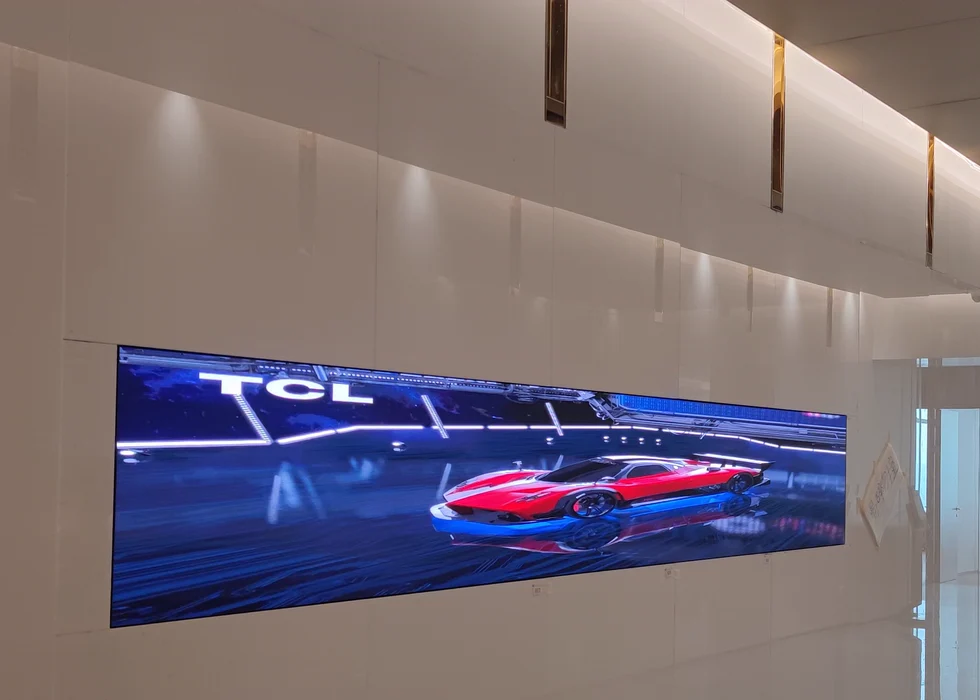

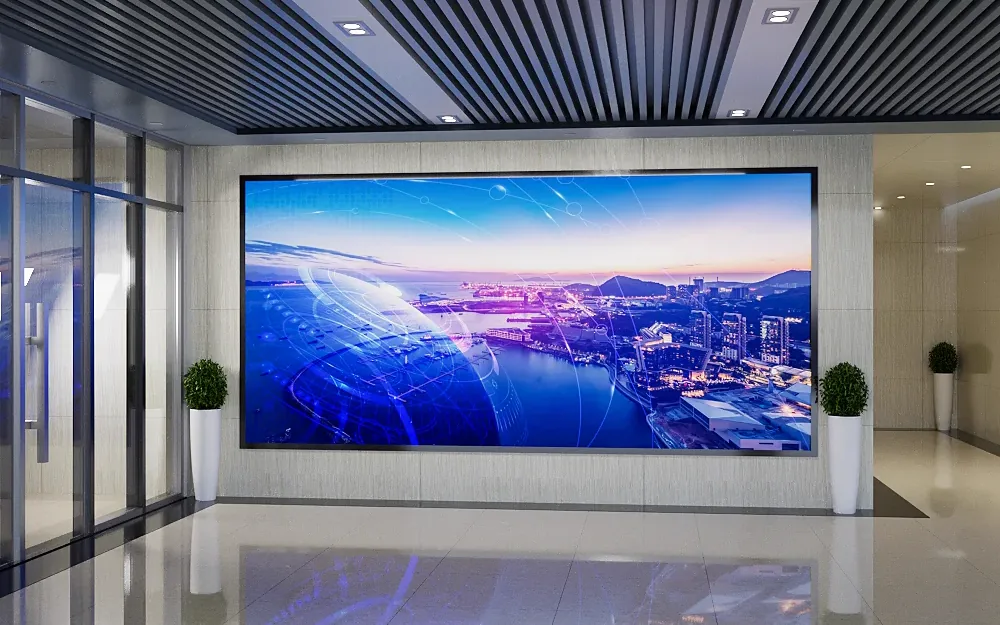

Lobby and Retail LED Wall
A permanent digital focal point for entrances, showrooms and branded spaces where brightness and finish must suit the interior.
- Architectural integration
- Brand and campaign content
- Front or rear service planning

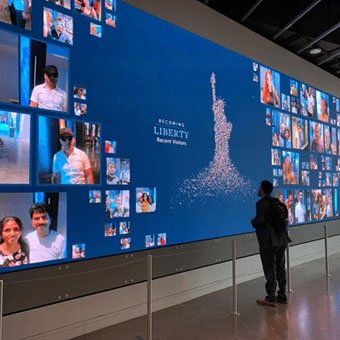

Custom Indoor LED Wall
Screen dimensions, cabinet layout, mounting, control and service access are coordinated around the approved site and content brief.
- Custom screen dimensions
- Cabinet and structure review
- Commissioning plan
INDOOR LED DISPLAY VIDEO
See Indoor LED Displays in Real Environments
View indoor LED display formats and visual performance across commercial, event and venue applications.
TECHNICAL DATA
Indoor LED Module Parameters
Compare fine-pitch and longer viewing-distance configurations. Open either range to review cabinet, brightness, power and performance data.
P1.56–P3 Indoor Module Parameters Fine to standard indoor pitch
| Parameter | P1.56 GOB | P2 | P2.5 | P2.6 | P2.9 | P3 |
|---|---|---|---|---|---|---|
| Usage | Indoor | Indoor | Indoor | Indoor | Indoor | Indoor |
| Cabinet Size (mm) | 600×337.5 | 960×960 | 960×960 | 500×500 | 960×960 | 960×960 |
| Cabinet Resolution (dots) | 384×216 | 480×480 | 384×384 | 192×192 | 160×160 | 120×120 |
| Scanning | 1/48S | 1/40S | 1/32S | 1/32S | 1/28S | 1/32S |
| Packaging Technology | SMD | |||||
| Installation | Front / Rear | |||||
| Pixel Density (dots/m²) | 409,600 | 250,000 | 160,000 | 147,456 | 112,896 | 111,111 |
| Brightness (cd/m²) | 600 | 800 | 800 | 800 | 800 | 800 |
| Max. Power Consumption (W) | 600 | |||||
| Average Power Consumption (W) | 200 | |||||
| Cabinet Weight (kg) | 9 | 13 | 13 | 7.5 | 7.5 | 13 |
| IP Rating | IP54 front / IP31 rear | IP31 | IP31 | IP31 | IP31 | IP31 |
| Best Viewing Distance | >1.5 m | >2 m | >2.5 m | >2.6 m | >2.9 m | >3 m |
| Cabinet Material | Iron / Aluminum | |||||
| Grayscale | 10,000:1 | |||||
| Refresh Rate | 3840 Hz | |||||
| Frame Change Frequency | 50 / 60 Hz | |||||
| Horizontal Viewing Angle | >140° | |||||
| Vertical Viewing Angle | >140° | |||||
| Input Voltage | AC 110–220 V | |||||
| Operating Temperature | -10°C to 60°C | |||||
| Operating Humidity | 10%–90% | |||||
| Nominal Life Span* | ≥100,000 hours | |||||
| Reference MTBF* | >10,000 hours | |||||
P3.91–P10 Indoor Module Parameters Longer viewing-distance options
| Parameter | P3.91 | P4 | P4.81 | P5 | P6 | P10 |
|---|---|---|---|---|---|---|
| Usage | Indoor | Indoor | Indoor | Indoor | Indoor | Indoor |
| Cabinet Size (mm) | 500×500 | 960×960 | 500×500 | 960×960 | 960×960 | 960×960 |
| Cabinet Resolution (dots) | 128×128 | 240×240 | 104×104 | 192×192 | 160×160 | 96×96 |
| Scanning | 1/16S | 1/20S | 1/13S | 1/16S | 1/16S | 1/8 |
| Packaging Technology | SMD | |||||
| Installation | Front / Rear | |||||
| Pixel Density (dots/m²) | 65,536 | 62,500 | 43,264 | 40,000 | 27,777 | 10,000 |
| Brightness (cd/m²) | 800 | 800 | 800 | 800 | 800 | 800 |
| Max. Power Consumption (W) | 800 | 600 | 800 | 600 | 600 | 600 |
| Average Power Consumption (W) | 400 | 200 | 400 | 200 | 200 | 250 |
| Cabinet Weight (kg) | 9 | 13 | 13 | 7.5 | 7.5 | 13 |
| IP Rating | IP31 | |||||
| Best Viewing Distance | >3.9 m | >4 m | >4.8 m | >5 m | >6 m | >10 m |
| Cabinet Material | Iron / Aluminum | |||||
| Grayscale | 10,000:1 | |||||
| Refresh Rate | 3840 Hz | |||||
| Frame Change Frequency | 50 / 60 Hz | |||||
| Horizontal Viewing Angle | >140° | |||||
| Vertical Viewing Angle | >140° | |||||
| Input Voltage | AC 110–220 V | |||||
| Operating Temperature | -10°C to 60°C | |||||
| Operating Humidity | 10%–90% | |||||
| Nominal Life Span* | ≥100,000 hours | |||||
| Reference MTBF* | >10,000 hours | |||||
Specifications are provided for product selection reference. Lifetime and MTBF are nominal reference values, not calendar guarantees. Final cabinet, protection, power and performance values are confirmed in the approved model data sheet and project quotation.
CUSTOM PARAMETERS AND SIZE
Configure the LED Wall Around the Actual Room
Screen dimensions, pixel pitch, cabinet format and control requirements are developed around the approved viewing distance, wall area and content workflow.
Service access, mounting depth, ventilation, power and signal paths are reviewed before the display configuration is confirmed.

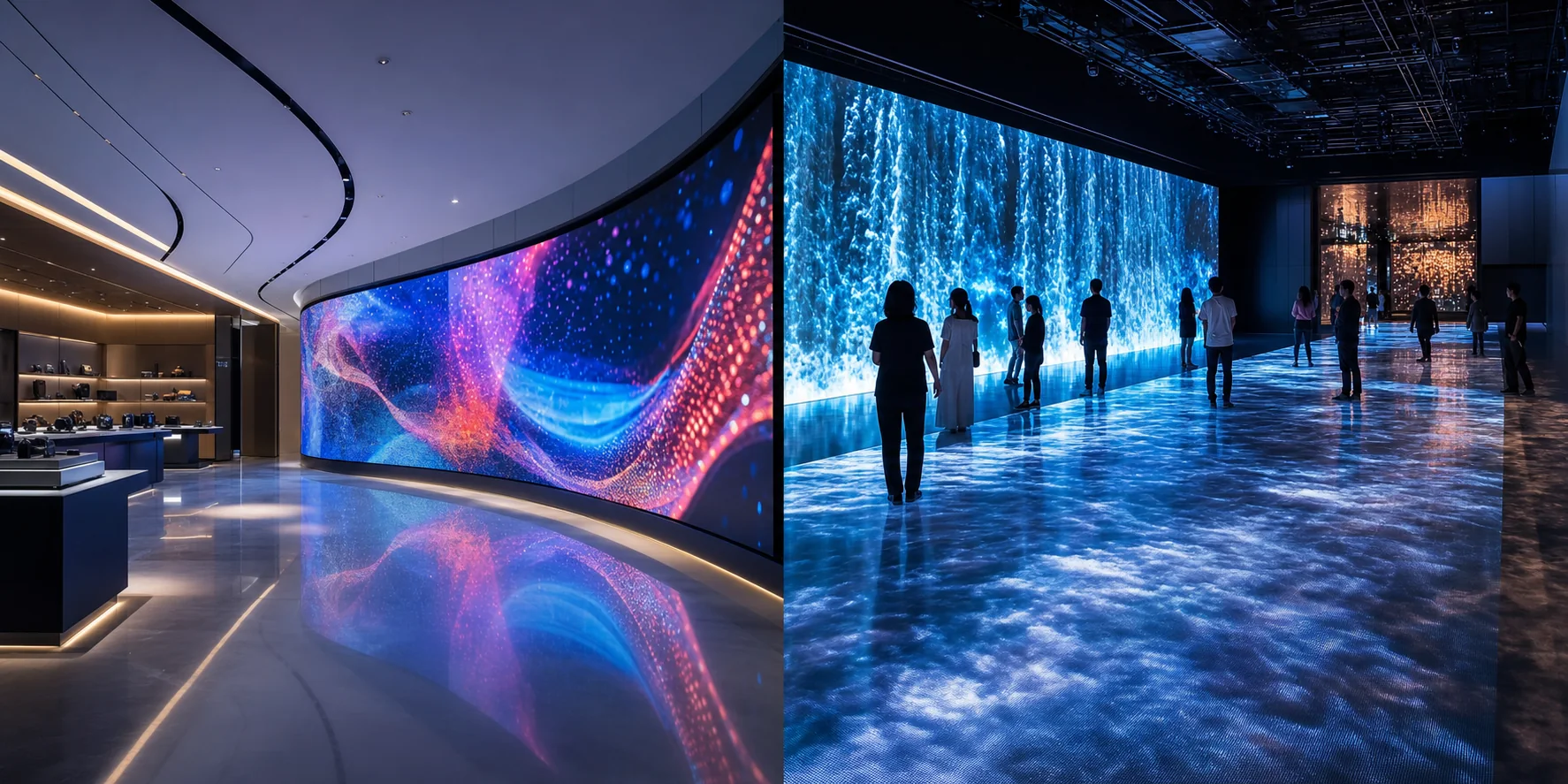

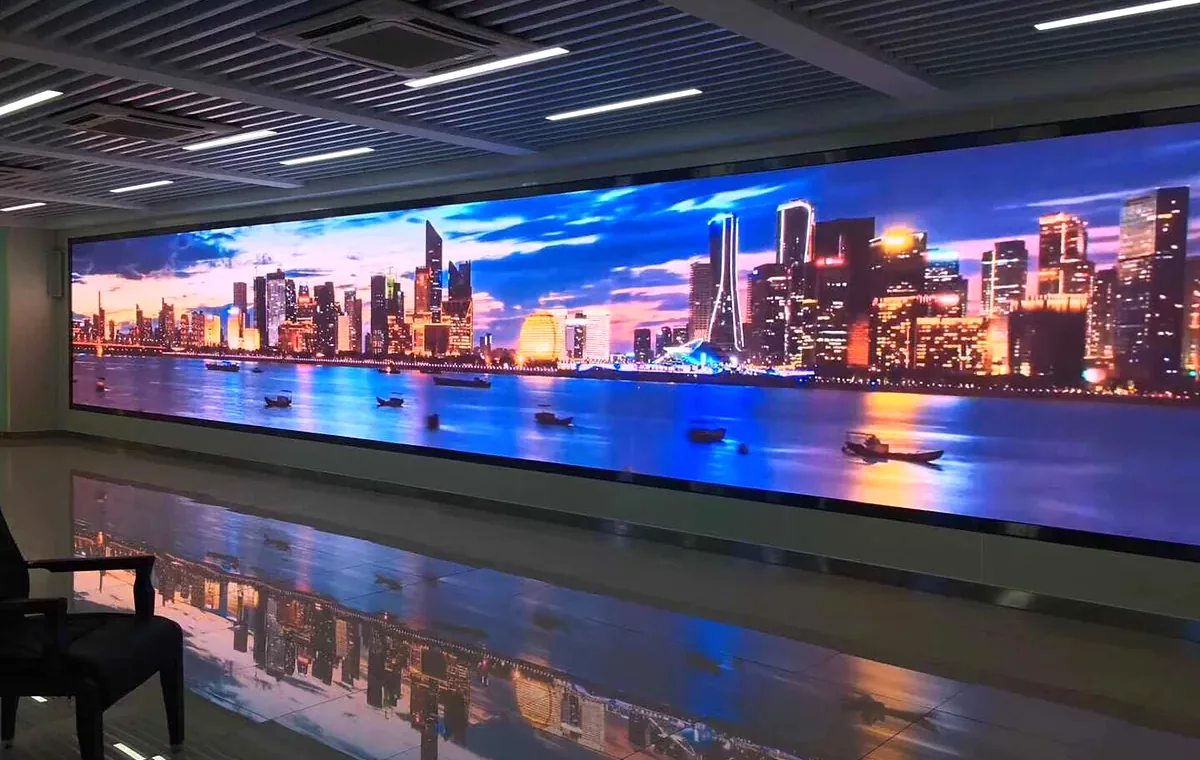

INDOOR APPLICATIONS
One Fixed LED Platform for Different Professional Spaces
The same indoor LED wall category is configured differently for close-viewing boardrooms, information-heavy control rooms, customer-facing retail environments and larger auditoriums.
- Boardrooms and presentation spaces
- Control rooms and broadcast studios
- Retail stores, showrooms and lobbies
- Auditoriums and multipurpose halls
INSTALLATION PLANNING
Plan Mounting and Service Access Before Production
A professional indoor LED display is more than the illuminated surface. Cabinet segmentation, supporting structure, front or rear access, power, signal routing and final commissioning must work as one system.
Send the room and wall dimensions →BUYER FAQ
Questions About Indoor LED Displays
Practical answers for product selection, installation planning and early-stage budgeting.
How much does an indoor LED display cost?
Indoor LED displays are customized products, so price depends on display type, pixel pitch, total screen size, cabinet and control requirements. An indicative range is approximately US$600–1,200 per square meter. Request a project-specific quotation for current pricing.
How should I choose the right indoor LED display?
Start with the closest viewing distance. A shorter distance generally requires a smaller pixel pitch. Screen dimensions, content, camera use, installation access and budget should also be reviewed.
What happens if an indoor LED display is installed outdoors?
Indoor products are not designed for outdoor rain exposure or strong sunlight. Moisture can damage the display, while lower indoor brightness may make the image difficult to see outdoors. Use a correctly rated outdoor system instead.

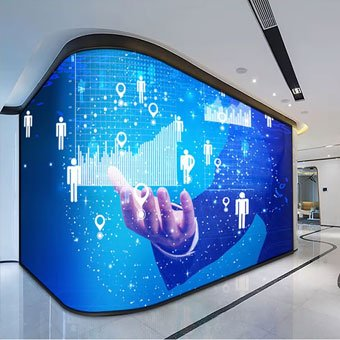

Can an indoor LED display be curved?
Yes. MVP LED provides customized curved display options using flexible modules or suitable cabinet structures. The required radius and support structure must be confirmed before production.
What is the difference between indoor and outdoor LED screens?
Outdoor screens generally need higher brightness, weather protection and configurations suited to longer viewing distances. Indoor screens prioritize close-viewing detail, lower brightness and integration with the interior environment.
How do I choose the right product format?
Send the required size, shape, visual effect, location, viewing distance and installation conditions. MVP LED can then recommend fixed, rental, transparent, poster, spherical, flexible or customized options.
PROJECT REVIEW
Need Help Selecting the Right Indoor LED Display?
Send screen dimensions, viewing distance, application, installation location and destination country for a practical recommendation.
